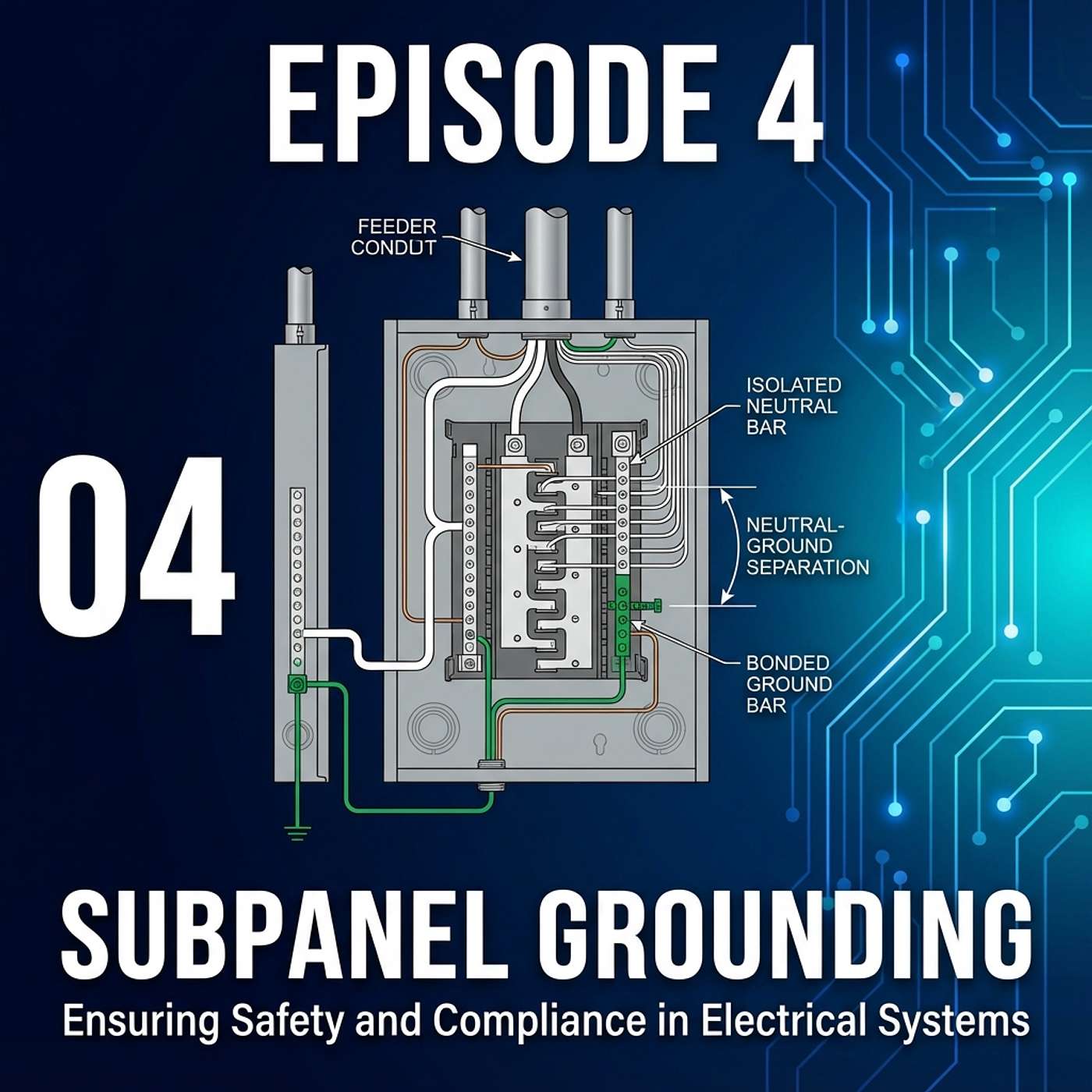

04 - Subpanel Grounding and Bonding: Subpanel Configuration, Neutral Isolation

Send us Fan MailMaster subpanel inspection requirements. Learn why neutral-ground separation is critical for safety, how to identify subpanels vs. main panels, and special grounding requirements for detached buildings.Episode OverviewSubpanel grounding and bonding is different from main panel configuration—and these differences are critical for safety. This episode explains why neutrals must be isolated from grounds in subpanels and how to identify dangerous violations.Why Subpanel Grounding is Different:IRC 2018 Section E3607.2: No grounding connections on load side of service equipmentNeutral conductors carry current (normally at zero voltage)What happens when neutrals and grounds are improperly connectedHow wiring errors can energize the neutral conductorShock risk from exposed bonded metal connected to neutralsWhat Qualifies as a Subpanel:ALL panelboards downstream from service equipmentMain lug panelboards (even if they're the "main panel" for the house)All outlets, junction boxes, and appliance disconnectsAny location past the GEC connection pointProper Subpanel Configuration:Neutral conductors connected to SEPARATE, ISOLATED neutral terminal barsNeutral bars NOT connected to enclosureEGCs connected to SEPARATE grounding terminal barsGrounding bars BONDED to subpanel enclosureTwo most common bonding methods: mounted to enclosure or bonding strap/barGrounding and Bonding at Detached Buildings:Single Branch Circuit (15-20 amps):No special grounding required if EGC present in cableEGC must be present in modern circuitsMultiple Branch Circuits or Feeder:Grounding electrode system REQUIREDNEW circuits: Must contain EGC, neutrals isolated from EGCEXISTING circuits without EGC: May remain, configure as main panel (neutrals and EGCs on same bars, both bonded to electrode and enclosure)Typical Defects to ReportEGCs and neutral conductors on same terminal bar (in subpanel)EGCs or EGC terminal bar not bonded to enclosureNeutral bar bonded to subpanel enclosure (should be isolated)Missing grounding electrode at detached buildingDetached building subpanel configured as main panel (with EGC present in feeder)Refer also to "Other Typical Defects Inside Enclosures" from Episode 03Key TakeawaysSubpanels = ALL panels downstream from service equipmentNeutral and ground separation is a SAFETY requirement, not optionalImproper bonding can energize exposed metal and cause shockDetached buildings have special grounding requirementsConfiguration depends on whether EGC is present in feederCritical Safety PrincipleCurrent flowing on neutral conductors can become energized under fault conditions. Keeping neutrals isolated from grounds prevents this current from energizing exposed metal that people might touch.IRC Code ReferencesIRC 2018: E3607.2 (GEC connection location), E3607.3 (detached building grounding)Visual Identification TipsLook for separate neutral and ground terminal barsCheck if neutral bar is mounted directly to enclosure (WRONG in subpanel)Verify green/bare wires (EGCs) are separate from white wires (neutrals)Trace the grounding electrode conductor to its connection pointIntro This episode is brought to you by GetSync.pro This episode is hosted by Charlie Bellefontaine of Chicagoland Home InspectorsFor complete training with visual materials, practice exams, and certification support, visit nhiexamprep.com© 2025 National Home Inspector Exam Prep Podcast. All rights reserved.
